DCG12-26
ABS Plastic Rated to UL94:HB
Specifications
- Product Type Title: Rechargeable Sealed Lead Acid Battery
- Product Group Title: DCG Series – Deep Cycle Gel
- Product Group: DCG Series
- Product Group Marketing Paragraph: Utilizing an innovative gel formation the Power Sonic DCG series of deep cycle gel batteries ensures enhanced performance and a longer cycle life compared to AGM technology. The unique plate design of the deep cycle gel battery provides a higher cycle life at increased depth of discharge. Rugged design and purpose built for applications that require regular and consistent cycling (charge and discharge) including medical devices, mobility applications, solar and wind.
- Long Term Storage Statement: DCG series batteries may be stored for up to 6 months at 25C (77 F) and then a freshening charge is required. For higher temperatures the time interval will be shorter
- Operating Temperature Range - Charge: 5°F (-15°C) to 104°F (40°C)
- Operating Temperature Range - Discharge: -4°F (-20°C) to 122°F (50°C)
- Dimensional Tolerances: +/- 0.04 in. (+/- 1mm) for length and width +/- 0.08 in. (+/- 2mm) for height dimensions
- Additional Specifications: For the detailed technical specifications please refer to the model's technical document
- Group Description: Introducing our advanced Deep Cycle Gel Battery, designed specifically for deep cycling applications. With its thixotropic gel electrolyte, this battery delivers enhanced performance and offers better recovery capabilities from deep discharge. Unlike AGM technology, it boasts a superior cyclic life, ensuring long-lasting and reliable power. Our battery's power/volume ratio provides an unrivaled energy density, giving you more power in a compact size. Featuring proven valve regulated technology, it guarantees safe operation without the need for maintenance. Its rugged impact resistant ABS case and cover make it durable and ready to withstand tough conditions. Upgrade to our Deep Cycle Gel Battery for unparalleled performance and peace of mind.
- Product Description: The DCG12-26 is part of our Rechargeable Sealed Lead Acid Battery range of deep cycle gel DCG Series which has been designed specifically to offer superior performance in cyclic applications. The 12V 26.0A gel battery offers a high cycle life in a wide range of cyclic applications including Golf Carts, Medical, Mobility, Solar, and Wind. All Power-Sonic batteries are subject to stringent quality controls through each step of the manufacturing process to ensure consistency and reliability.
- Charging Description: Cycle Applications: Apply constant voltage charge at 2.35VPC – 2.45VPC (14.1 to 14.7 volts for 12V Monobloc) at 20°C. The initial charging current should be set at less than C/5 Amps. Switch to float charge when the current falls to a 3% capacity rate to avoid overcharging.
Stand-By or "Float" Service: Apply constant voltage charge of 2.25VPC – 2.30VPC (13.5 to 13.8 volts for 12V Monobloc) at 20°C. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charged condition.
Temperature Compensation: Charging voltage for both cyclic and stand-by applications should be regulated in relation to ambient temperature. As temperature rises, charging voltage should be reduced to prevent overcharge and increased as the temperature falls to avoid undercharge.
For further charging information, including temperature compensation factors, see the Power-Sonic Technical Manual.
- Voltage: 12
- Number of Series Cells: 6
- Recommended Charge Current (A): 2.6 - 8.7
- Stored Energy (Wh): 312
- Rated Capacity - 20hr: 26.0
- Rated Capacity - 10hr: 24.2
- Rated Capacity - 5hr: 20.8
- Rated Capacity - 1hr: 14.3
- Capacity Voltage - 20hr: 10.50
- Capacity Voltage - 10hr: 10.50
- Capacity Current - 10hr: 2.42
- Capacity Voltage - 5hr: 10.20
- Capacity Voltage - 1hr: 9.60
- Cycle Constant Voltage Range: 14.00V – 14.70V
- Float Constant Voltage Range: 13.50V - 13.80V
- Initial Charging Current (A): 2.60
- Life Expectancy:
- Capacity Current - 5hr: 4.16
- Capacity Current - 1hr: 14.30
- Internal Resistance (mΩ): 13.5
- Capacity Current - 20hr: 1.30
- Recommended Chargers: PSC-122000ACX
- Case: ABS Plastic Rated to UL94:HB
-

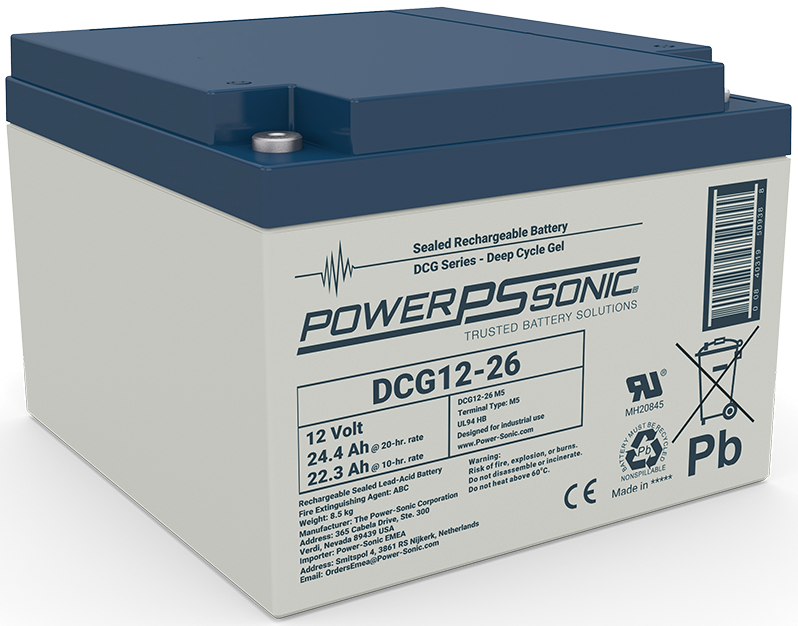

Image Featured:
- Minimum Weight (kg): 8.89
- Minimum Weight (lbs): 19.60
- Length (in): 6.57
- Length (mm): 167
- Width (in): 6.89
- Width (mm): 175
- Height (in): 4.92
- Height (mm): 125
- Height Over Terminal (in): 4.92
- Height Over Terminal (mm): 125
-
Dimensions Image:
- ISO9001:2015 - International standard that specifies requirements for a quality management system (QMS)
- Prop65 - Compliance required providing warnings to Californians about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm
- SLA Transport - Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B., and certified by Department of Transportation regulations that include hazardous materials transportation regulations and federal motor carrier regulations
- UL Recognized - Rigorous safety testing ensuring the safety and efficiency of machinery used by workers
- Gas Recombination - Gas recombination technology for quick recovery of capacity during charge
- Gel Electrolyte - Thixotropic gel electrolyte for enhanced performance
- Power Volume Ratio - Excellent power to volume ratio yielding high energy density
- SLA ABS Case - Rugged vibration and impact resistant ABS case and cover
- SLA Cycle Life - Enhanced design for extended and optimal cycle life
- SLA Maintenance Free - Proven valve regulated technology that guarantees safe operation without maintenance or refilling
